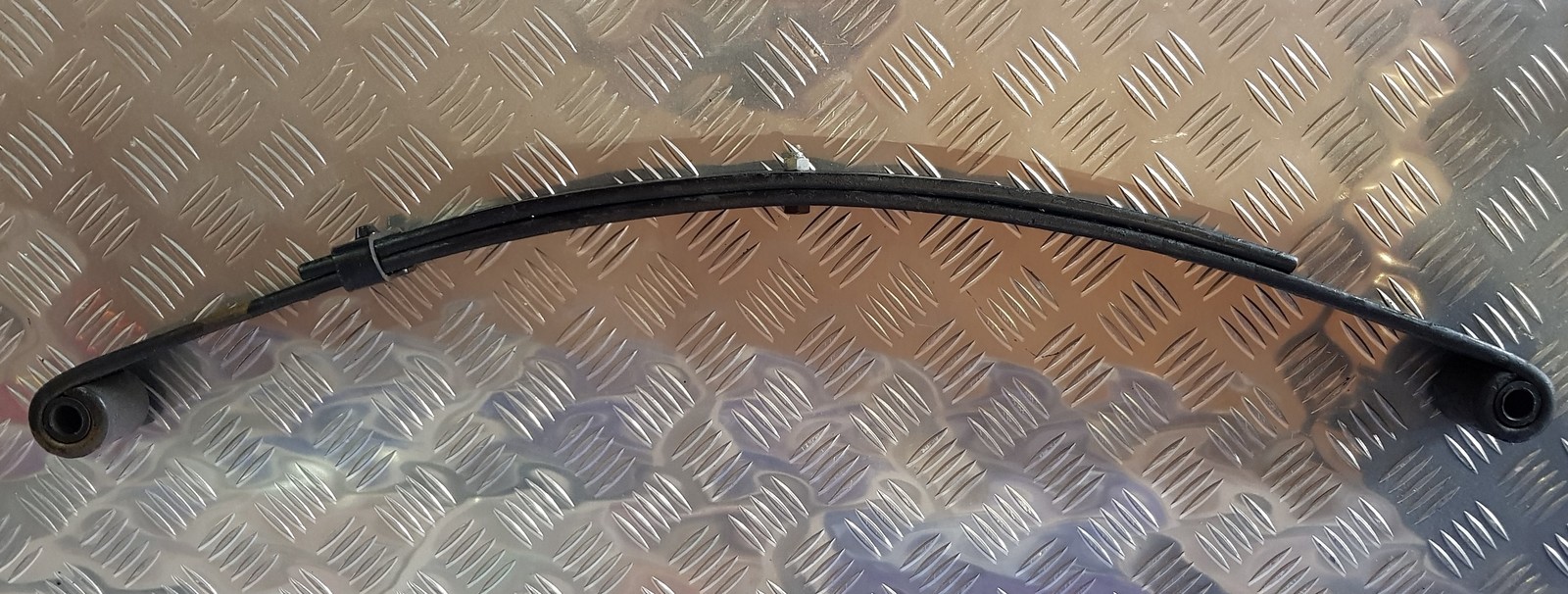

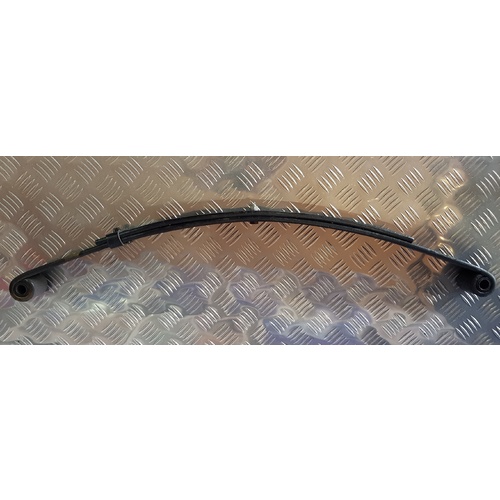

4L EYE & SHACKLE SPRING BLACK 8mm Leaf 45mm wide 710mm long 1,100kg
4L Spring Pair 8mm thick leaf Shackle
4 Leaf Eye & Eye Shackle style Trailer spring Black 1,100KG rating per pair suitable for box trailers and boat trailers single axle and can be used for tandem Load sharing for box trailers, boat trailers and car trailers etc.
45mm wide x 8mm thick leaf 710mm long centre of eye to the end of slipper measured with no load 9/16" bush can be supplied with other sizes
Eye To Eye (Shackle) Springs
This style of spring is the ”traditional” automotive leaf spring.
Both ends of the spring are coiled into an eye into which a bush is placed. The front of the spring is captive in a spring “hanger” and the
rear of the spring is allowed to swing on shackle bolts and shackle plates around a rear “hanger” or “dumb jack” and pin.
This spring system gives smooth operation, with the parts which naturally wear over time, being able to be replaced.
Eye to eye springs are the most commonly used spring when a multi axle configuration is being considered. By linking the springs through a “rocker” assembly, a transfer of load is achieved when one axle is carrying a large percentage of the weight (crossing kerbs etc.) so that the loads are more evenly spread throughout the system.
Eye To Eye (Shackle) Springs 45mm x 8mm Center Bolt Central
Eye To Eye (Shackle) Springs 45mm x 8mm Center Bolt Central
Eye To Eye (Shackle) Springs 45mm x 8mm Center Bolt Offset
(SE5504SH)
SKU | SE5504SH |
Shipping Weight | 10.0000kg |
Shipping Width | 0.100m |
Shipping Height | 0.200m |
Shipping Length | 0.800m |
Shipping Cubic | 0.016000000m3 |
Unit Of Measure | ea |
