ADJUSTABLE QUICK RELEASE 1-3 STAGES
$165.00
In Stock

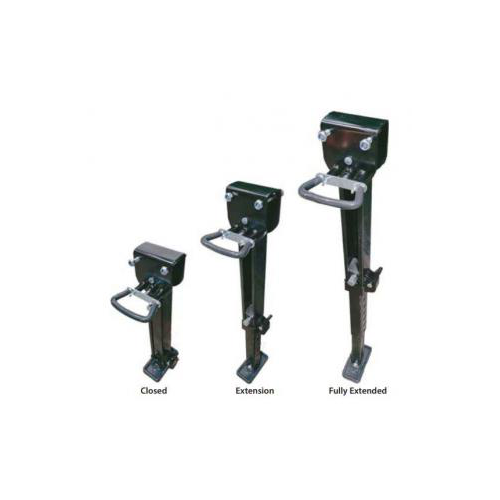

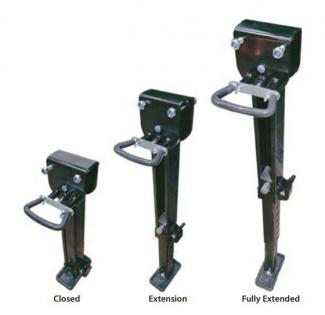

Quick Release Adjustable Leg with Aluminium Foot - Weld on - Adjustable Length version - Aluminium construction.
Size 1 to Size 3
How to Use:
- Pull handle to swing leg into lowest lock position (variable) then take up support weight using hex head handle.
- Support capacity varies depending on angle of leg and surface grip of foot.
- Generally a more vertical position will give greater load capacity but will reduce stability.
Note: ALQRs are stabilising legs. They are not designed to be used as levelling legs.
Product Specifications
| Product Code | AL-ALQR1-3 |
|---|---|
| Closed Height | 430mm |
| Extension Leg Max. | 160mm |
| Lift Leg Max. | 120mm |
| Extended Height | 710mm |
| Replaces | ALQR1, ALQR2, ALQR3 |
| Foot | Large Aluminium Foot Plastic Coated |
| Finish | Aluminium Hammertone Finish |
| Unit Weight | 8.00lg |
(ALQR1-3)
| SKU | ALQR1-3 |
| Shipping Weight | 8.0000kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.260m |
| Shipping Length | 0.430m |
| Shipping Cubic | 0.008944000m3 |
