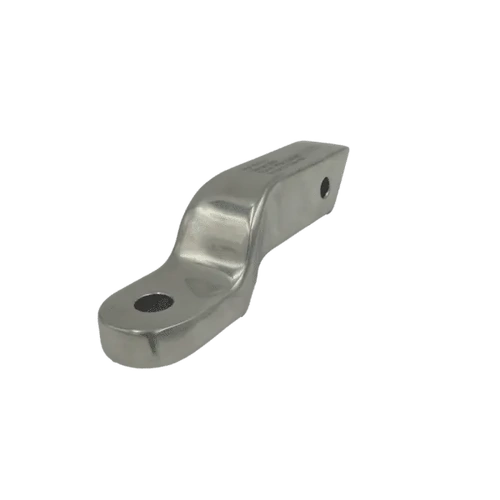

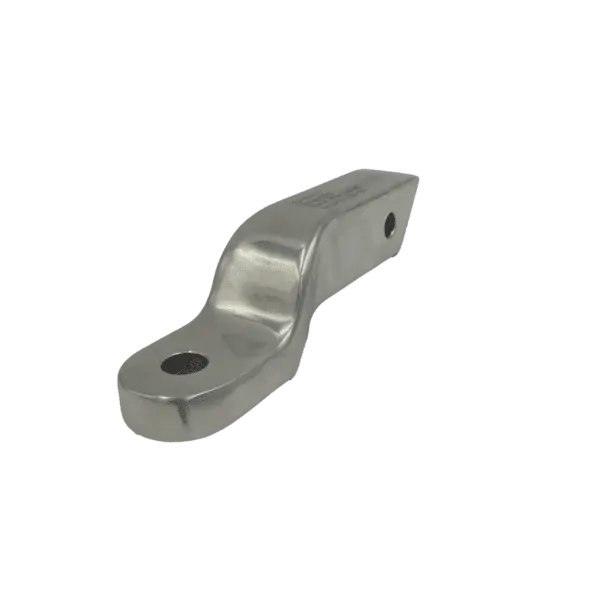

ALLOY STINGER 50MM DROP

Our Stinger Hitches are never equaled. Light weight one-piece, great looking hitches.

With its unique, stand-out appearance the Stinger ball mount offers boat, caravan, ATV, and utility trailer owners the highest quality and one of the best-looking ball mount hitches on the market. The Stinger is made of one solid piece of aluminium alloy with no welds, giving it all the strength and durability you need. The Stinger can be used in a drop or rise position giving you the flexibility of two position heights. Note: cannot be used with a DO35 Hitch in the drop position. Why? The DO35 requires 70mm clearance from the pin center. The Stingers only have 60mm clearance in the drop position so the 2 “impact resistant Bumpers” on the DO 35 will hit the body of the Stinger on tight turns. Included with every Stinger Kit is a 50mm tow ball and quality locking pin making it convenient to install.

STINGER features:

• ADR Compliant (Australian Design Rules 62/02 – Mechanical Connections Between Vehicles) 2007
• Aluminium alloy 6061 T6 (solid bar) construction

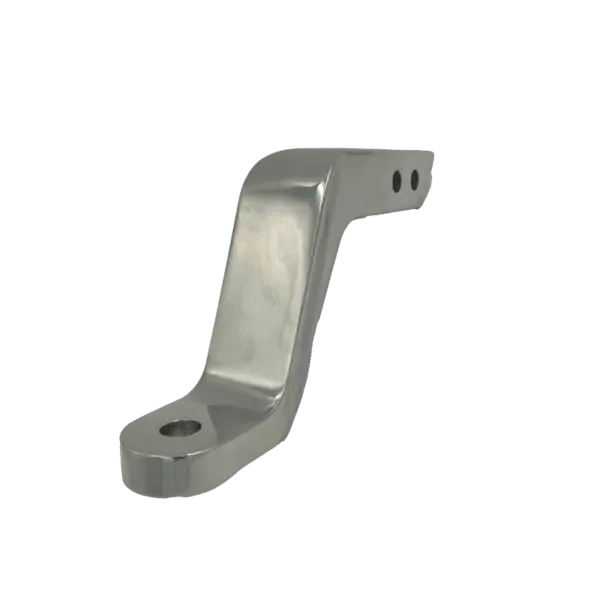

• Available in 50mm, 100mm, 150mm drop sizes
• All Stinger sizes can be used in a drop or rise position
• Fits all 2″ standard tow bar receivers
• 7/8” (22.2mm) ball shank hole diameter (Fits standard DO35 in rise position only)
• 3500 kg GTWR
• 350kg tongue weight
• No Paint – No Rust – Forever
• Each kit includes: Stinger, 50mm Tow ball and Locking Pin
• 3 Year Unconditional Warranty

Suitable for the Ford Ranger and BT50 short receiver tow bars. NOT SUITABLE FOR DO35 in a DROP POSITION (see above)

Benefits

• Is aluminum strong enough for use in ball mounts?  The short answer is YES!

• Stinger ball mounts will never rust and are much lighter than standard steel ball mounts of similar strength. The aluminium looks great by itself, so there is no need for paint or chrome plating that will chip and peel over time. To keep the shine, you simply need to polish the hitch from time to time, restoring the high gloss surface and making your hitch look brand new.
