ARK XO OFF ROAD JOCKEY WHEEL 750KG

ARK OFF ROAD JOCKEY WHEEL

$295.00
RRP $325.00
SAVE $30.00 (9%)
In Stock
Normally held in stock for 1 day dispatch


Calculate Shipping



Free pick-up from store - $0.00
Free pick-up from store 435 Bayswater Road, Mount Louisa 4814 between 8am until 4:30 pm weekdays and 8am until 12pm Saturday

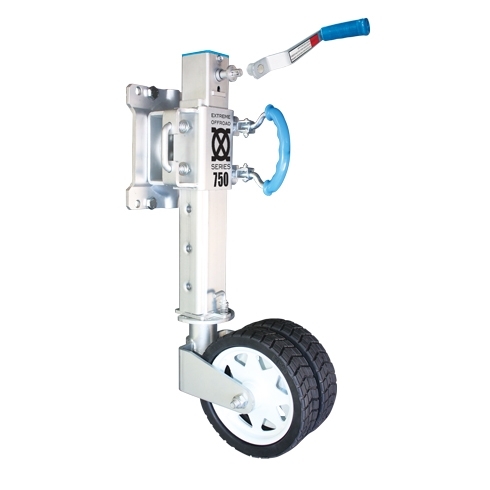

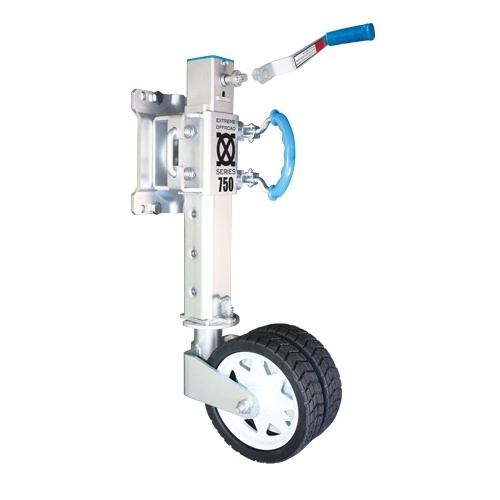

ARK EXTREME OFF ROAD JOCKEY 750KG



Our new Extreme Offroad Series (XO) Jockey Wheel is probably the toughest, most advanced Jockey Wheel in Australia today. But not only is it tough, it’s also versatile – with multiple height options, a highly maneoverable trailing yoke design and 5 different yoke locking positions.



Magnetic, removable, side-winding handle

• Easier raising & lowering of trailers/caravans - away from stone guards, toolboxes or jerry can holders

• Magnetic, removable handle ensures safe stowage and prevents damage in offroad situations



Heavy duty body with 750kg rating

• Increases load carrying capacity and eliminates the likelihood of “bend” under weight

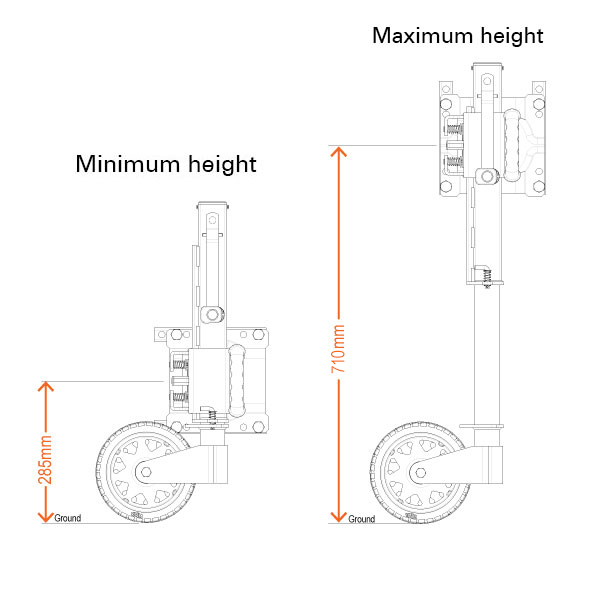

4 x adjustable height positions

• 250mm height adjustability at each of the 4 positions, whilst maintaining a central swivel point for extra strength



Heavy duty swivel clamp

• 4 bolt pivot point ensures no more bowing under weight

• Suitable for 75mm, 100mm, 130mm and 150mm drawbars

• Comes with mounting hardware - no more welding onto drawbars



Easy-pivot trailing yoke design

• Wheel pivots easily, even under heavy load or on soft ground



Dual wheel with sealed bearings & offroad tread

• Increases offroad grip and spreads the load

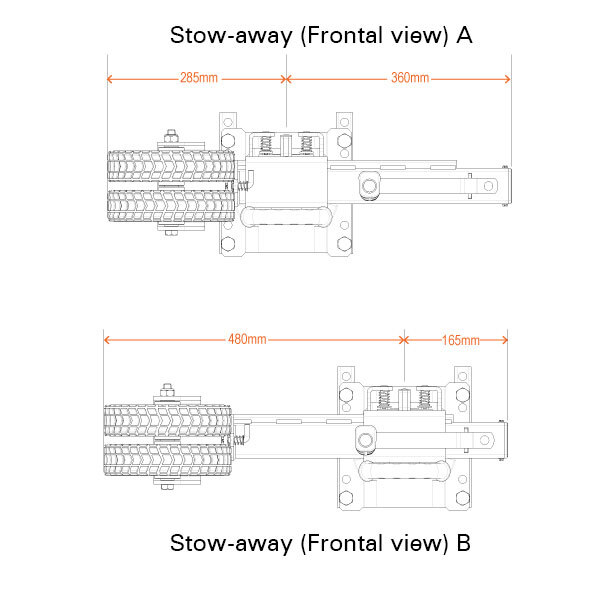

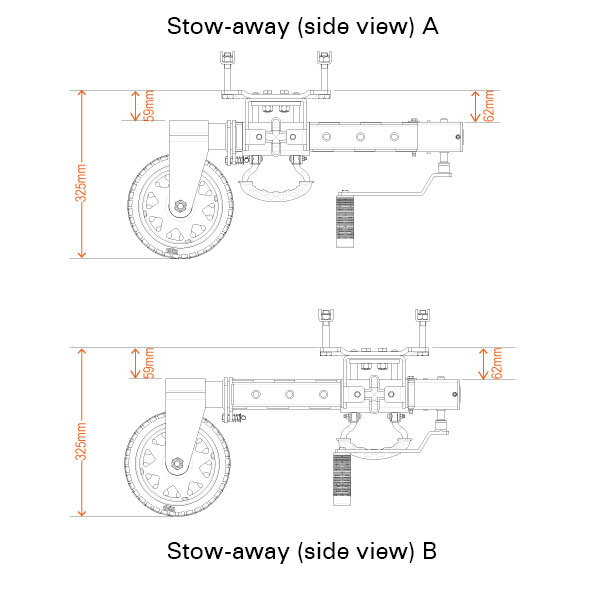

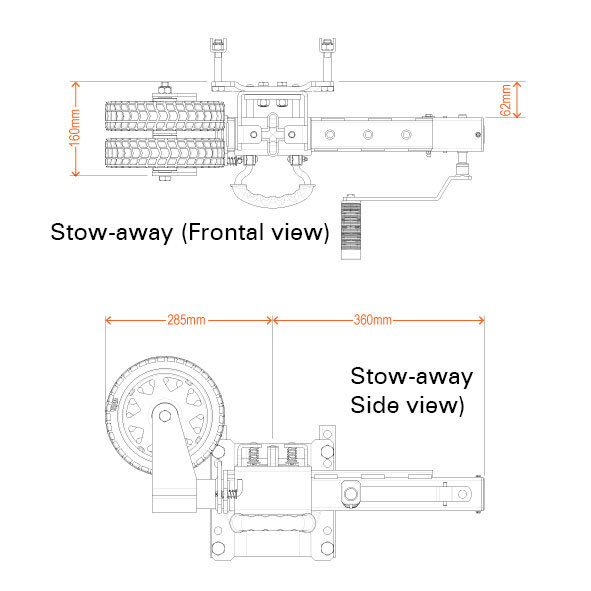

Variable yoke lock

• Allows you to lock the yoke in 1 of 5 positions when the jockey wheel is stowed, to allow for clearance of stone guards, toolboxes, jerry can holders etc…



Rust resistant finish

• Salt spray tested for 600 hours

(XOJW750)

SKU XOJW750
Brand ARK
Shipping Weight 15.0000kg
Shipping Width 0.300m
Shipping Height 0.750m
Shipping Length 0.250m
Shipping Cubic 0.056250000m3
Unit Of Measure ea
