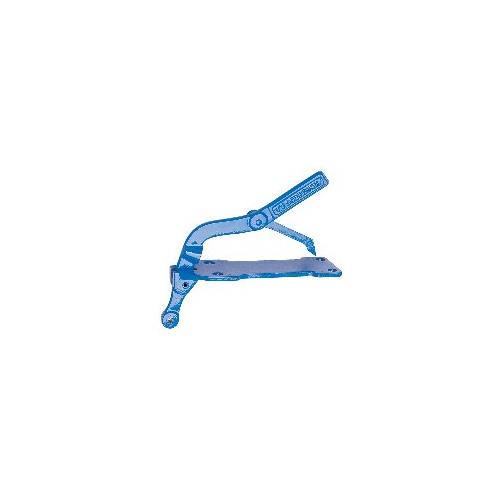

BRAKE LEVER WITH PLATE FOR OVERRIDE/OVERRUN BRAKES
OVERRIDE BRAKE LEVER
Brake lever for Override type brakes and park brakes
BRAKING
General Description
We offer the :
- A803 Series - Hydraulic
- A807 and A790-MBP Series - Mechanical
braking systems to complement our coupling range.
The following table describes where the braking systems can be used.
|
||||||||||||||||||||||
|
Table 1. Coupling Braking Systems
|
Range
Hydraulic Braking - A803 Series
- For use with all override coupling systems including A800, A800-LBS, A790 and PB700.
- Fully adjustable for maximum performance.
- Allows full mast cylinder travel.
- Handbrake lever with antiswing ratchet.
- Suits 3/4", 7/8" and 1" master cylinders.
Mechanical Braking - A807 Series
- For use with all override coupling systems including A800, A800-LBS, A790 and PB700.
- All ductile casting, handbrake lever and antiswing ratchet.
Mechanical Braking - A790-MBP Series
- For use with A790 75 mm Ring override coupling only.
- All ductile casting, handbrake lever and antiswing ratchet.
- Limited swivel baseplate restricts rotation of ring and prevents lockup on pintel hooks.
Ordering Information And Replacement Parts
| Description |
Part Number
|
|
|---|---|---|
| Hydraulic Braking | ||
| 3/4" MASTER CYLINDER ASS TO A803 | A803-34 | |
| 3/4" M/CYLINDER ASS TO PLATED A803 | A803-34 P | |
| 3/4" MASTER CYLINDER ASS TO A803 (PBR TYPE) | A803-34PBR | |
| 7/8" MASTER CYLINDER ASS TO A803 | A803-78 | |
| PLATED HYD BRACKET WITH 1 7/8" M/CYL | A803-78 P | |
| HYDRAULIC BRACKET | A803 | |
| HYDRAULIC BRACKET -PLATED | A803 P | |
| HANDBRAKE LEVER CATCH DRILLED | A805D | |
| HYDRAULIC BRAKE LEVER & RATCHET ASS | A805/A806 | |
| HYDRAULIC BRAKE LEVER DRILLED | A806D | |
| 3/4" MASTER CYLINDER MSK-34 | MSK-34 | |
| 3/4" MASTER CYLINDER -P6575 PBR (PBR TYPE) | MSK-34 PBR | |
| 7/8" MASTER CYLINDER | MSK-78 | |
| 1" PBR MASTER CYLINDER (PBR TYPE) | MSK-1PBR | |
| MASTER CYLINDER KIT | MSK-777 | |
| Mechanical Braking | ||
| MECHANICAL BRACKET | A807 | |
| MECHANICAL BRACKET -PLATED | A807 P | |
| MECHANICAL COUPLING BASE PLATE | A790-MBP | |
| MECHANICAL LEVER DRILLED | A807D | |
| MECHANICAL LEVER & RATCHET ASSEMBLY | A807/A809 | |
| 809 RATCHET DRILLED | A809D | |
 |
| A803 |
 |
| A807 |
 |
| A790-MBP |
 |
| MSK-1, MSK-78, MSK-34 |
(BRAKELEVER)
| SKU | BRAKELEVER |
| Shipping Weight | 2.0000kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.250m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.007500000m3 |
