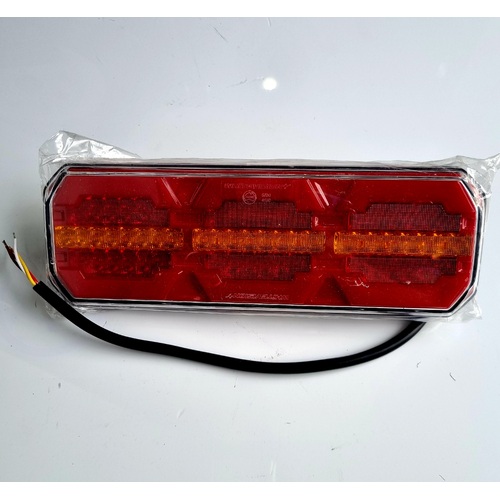

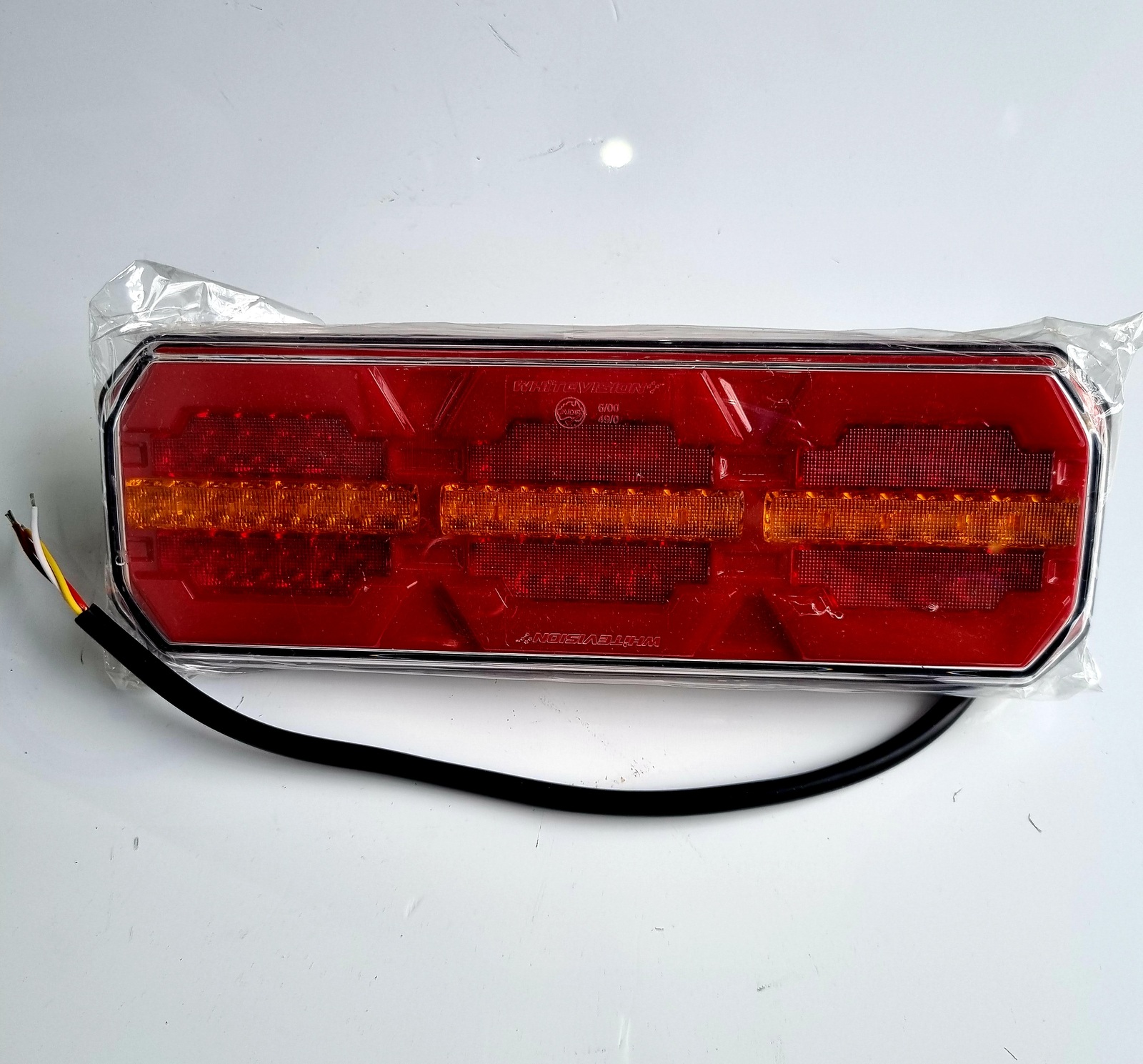

CRL285 SERIES COMBINATION WITH RUNNING INDICATOR
The new CRL285 series is the next generation in multifunction rear combination signal lamps.
Delivering highly styled optics and unique lens design, this series provides a fully compliant rear lighting solution for stop, diffused rear position, sequential indicator, reverse and reflector functions.
Constructed with a polycarbonate lens and heavy duty smart clip base with multiple mounting points, the CRL285 series is designed for high reliability and performance. Suited to OEM and commercial vehicle applications.
Features
• All in one solution for rear lighting
• Highly styled, modern design
• Diffused rear position
• Sequential indicator
• Heavy duty Smart Clip™ base
• Fully ADR compliant
Specifications
| Applications | • Trucks • Rigid Bodies • Buses & Coaches • Trailers • Custom Builds |
| Functions | Stop / Diffused Rear Position / Running Indicator / Reverse / Reflector |
| Voltage | 9-33V DC Varivolt® |
| Wattage | Stop:3.5W, Rear Position:2.5W, Indicator:2.6W Reverse:2.3W |
| Mount | Front or Rear Stud Mount |
| Materials | Polycarbonate Lens & Base |
| Environmental | IP67 Hermetically Sealed |
| Cable Length | 0.5M Standard |
| Dimensions | 283 x 100 x 33mm |
| ADR Compliance | Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Reverse:1/00, Rear Retro Reflector:47/00 |
(LICRL285LED)
| SKU | LICRL285LED |
| Brand | WHITEVISION |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.100m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.002400000m3 |
| Unit Of Measure | ea |
