McHitch 4.5Tonne Automatic coupling AUEF45K KIT

RRP $495.00
SAVE $10.00 (2%)
In Stock
Kept in stock for dispatch within 24 hours or sent direct from warehouse

Calculate Shipping

Free pick-up from store - $0.00
Free pick-up from store 435 Bayswater Road, Mount Louisa 4814 between 8am until 4:30 pm weekdays and 8am until 12pm Saturday

4.5 TONNE "Easy Fit' Caravan Automatic Coupler


This is the newest coupling we have to offer, the same physical size and footprint as the 3.5 tonne, but now with upgraded parts like the hi-tensile chromoly shaft, a 7/8" and 1-1/4" shank stud are included as well as a set of 9/16" hi-tensile bolts. This now capable and ADR approved to a huge 4.5 tonne capacity! It has a standard bolt hole pattern for ease of fitment. Due to the larger diameter bolts, the nuts may have to be mounted on top, with the bolt head underneath.


Fully ADR 62/02 tested and compliant.

* A super low height of 125mm at its highest point. This is lowest coupling on the market.
*Capable of over 90 degrees of movement on every axis.

The bolt hole dimensions (centre to centre) are a standard size of 185mm x 55mm, can easily be manipulated slightly due to the holes being elongated.

Choose from the options below for the type of weight distributing head you have. Pictured are all the major types.

If you have a standard tow tongue (no WDH set-up)
Choose option 1

For Weight Distributing Heads, we offer an adaptor pack for an extra $50 that includes an adaptor plate, and a set of WDH bar rollers.

If you have either:
*Hayman Reese WDH
*Eaz Lift WDH
*Quick lift STANDARD offset WDH
Choose Option 2

  • Details

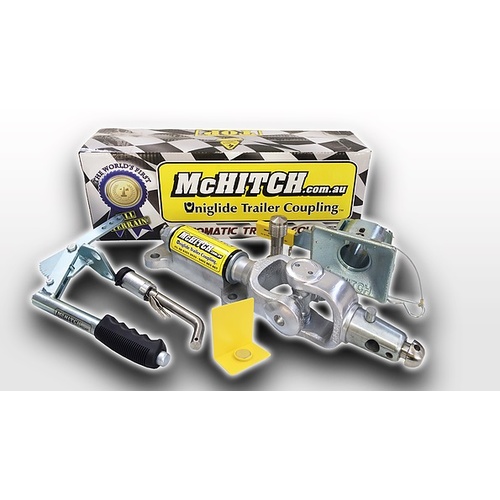

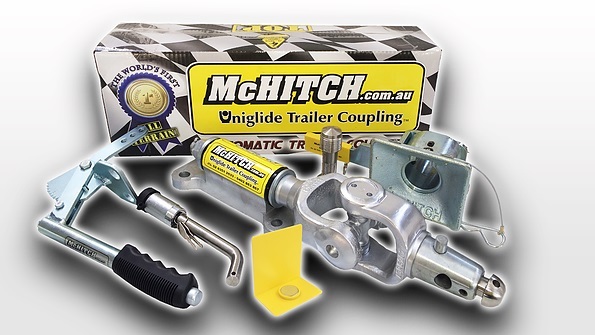

    The whole kit includes: Coupler, receiver, laser-cut ratchet handbrake, stainless steel locking hitch pin, yellow magnetic sight marker and fitting instructions.


Shipping Weight 8.0000kg
Shipping Width 0.250m
Shipping Height 0.250m
Shipping Length 0.550m
Shipping Cubic 0.034375000m3
Unit Of Measure ea
