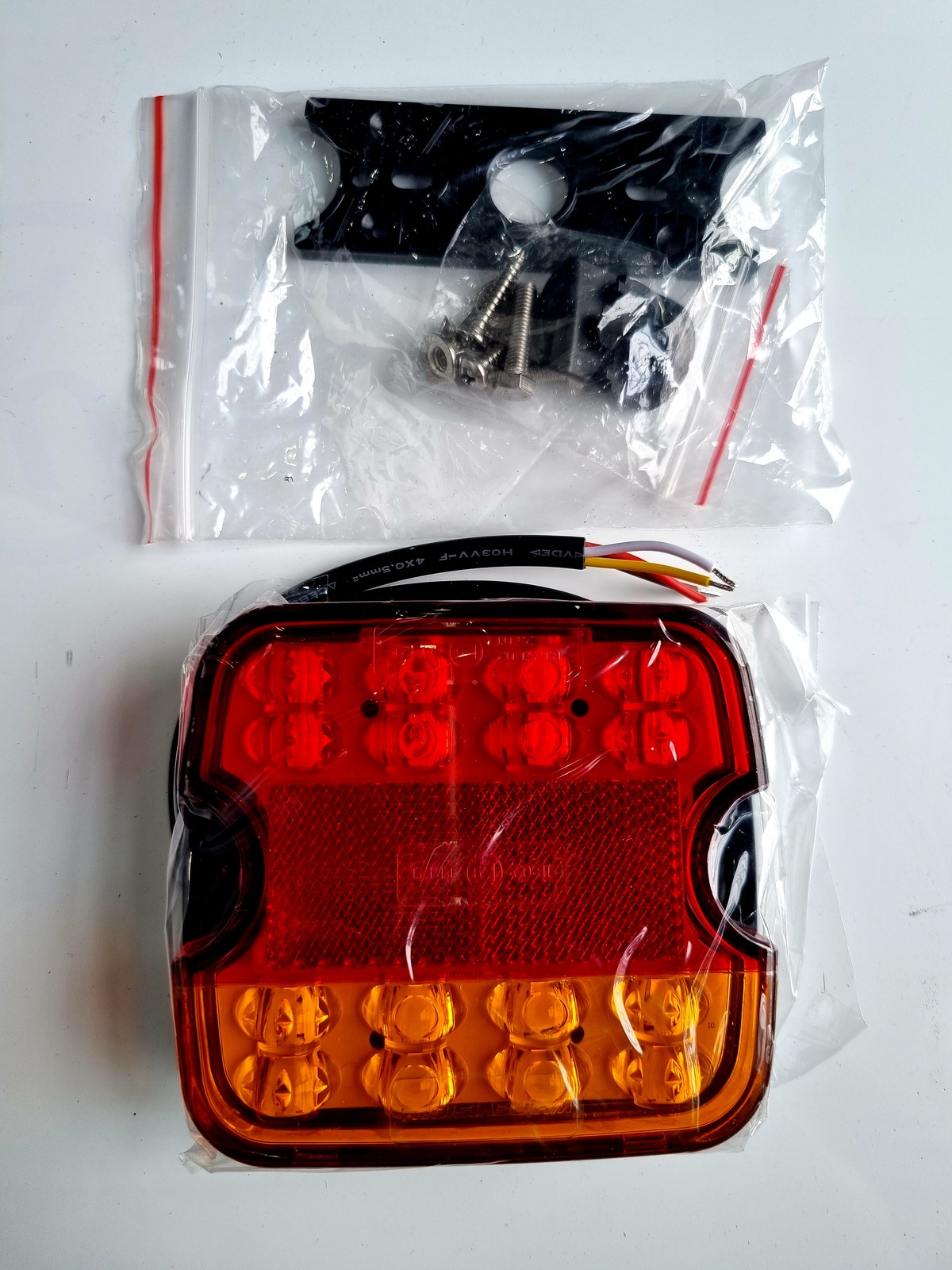

CRL10 SERIES COMBINATION TRAILER LAMP
The CRL10LED is new generation combination lamp with innovative design making is suited to a wide variety of applications . Incorporating stop / tail / indicator, licence plate and reflector functions all in one package, the CRL10LED features the new Multimount™ system enabling the lamp to be either stud mounted or screw mounted depending on the mounting requirement. This makes a very versatile lamp for almost any rear signalling application. Comprising a polycarbonate lens, high quality optics and tough ABS base the CRL10LED series delivers paramount reliability and performance. Suited to OEM and commercial applications.
Features
• Full function LED combination lamp
• Highly aesthetic optical design
• All in one solution for rear lighting
• Rear stud or front screw mount - Multimount™
• Fully ADR compliant
Specifications
| Applications | • Trailers • Boat Trailer • Caravans • Light Trucks |
| Functions | Stop / Rear Position / Direction Indicator / Licence Plate / Reflector |
| Voltage | 9-33V DC Varivolt® |
| Wattage | Stop:1.2W Rear Position:0.17W Licence Plate 0.1W Indicator:1.2W |
| Mounting | Rear stud or front screw Multimount™ |
| Materials | Polycarbonate Lens ABS Body |
| Environmental | IP67 Hermetically Sealed |
| Cable Length | 0.5M, 9M Optional |
| Dimensions | 104x94x20mm |
| ADR Compliance | Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Rear Licence Plate: 48/00, Retro Reflector:47/00, |
(LI4507)
| SKU | LI4507 |
| Brand | WHITEVISION |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.100m |
| Shipping Length | 0.120m |
| Shipping Cubic | 0.001440000m3 |
| Unit Of Measure | ea |
